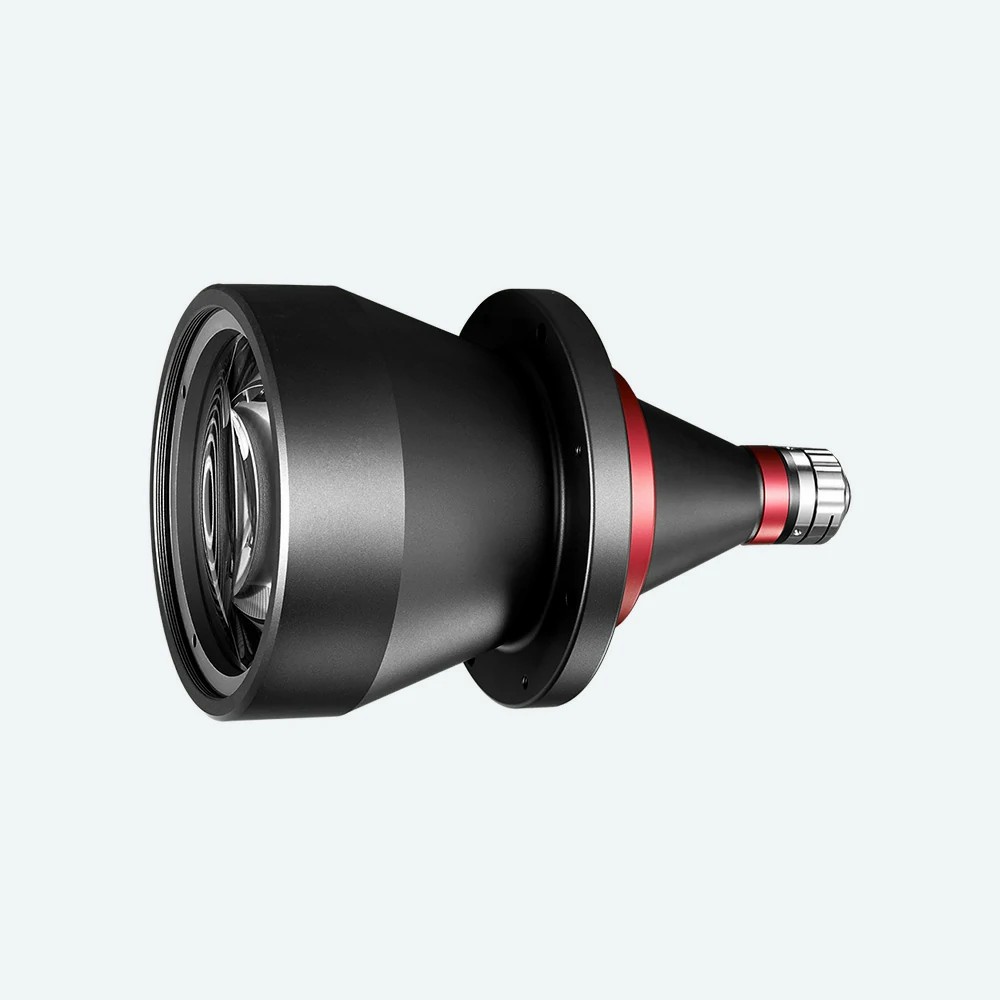

| Model NO. | DTCM120-100H-AL | Image Circle Diameter (Φmm) | 8(1/2") | ||||
| Magnification(x) | 0.08 | Working Distance(mm) | 238±4 | ||||
| NA | 0.0095 | Type | Bi-Telecentric | ||||
| Mount | C | Object Field of View(Φmm) | 100 | ||||
| Best Aperture(f/#) | 4.2 | MTF30 (lp/mm) | >210 | ||||
| Depth of Field(mm) | ±68.7@F11 | Distortion Typical(% max) | <0.1 | ||||
| Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 505±4 | ||||
| Length (mm) | 249 | Weight(kg) | 3 | ||||
| Measured Depth of Field (mm) | 10 | Filter Screw Size | M128x1.0 | ||||
| Field of View (mm × mm) | 1/2.5" 9P001/31 (5.7x4.28) | 71.3x53.5 | |||||
| 1/2.3" 9J003 (6.44x4.62) | 80.5x57.8 | ||||||
| Compatible Lighting | Telecentric LED Lighting | DTCL-100H-xW-y | |||||
| Beam Diameter 100mm | |||||||
