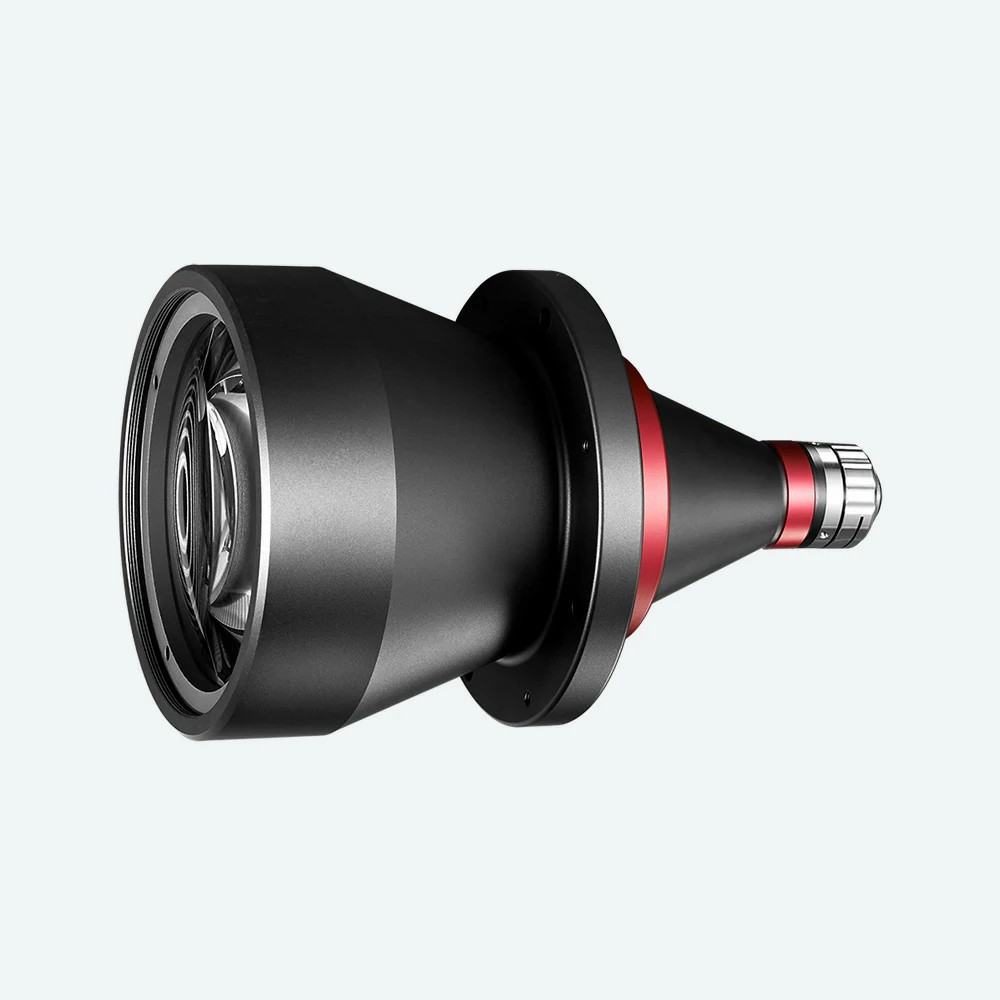

1/2" 0.059X Bi-Telecentric Lenses | DTCM120-136-AL COOLENS®
$3,215.00 USD
-
Return & Refund Policy
-
Fast Delivery
-
One-on-one service
-
Reliable Manufacturer
-
Worldwide shipping
-
Multiple payment methods
| Model NO. | DTCM120-136-AL | Image Circle Diameter (Φmm) | 8(1/2") | ||||
| Magnification(x) | 0.059 | Working Distance(mm) | 288±5 | ||||
| NA | 0.007 | Type | Bi-Telecentric | ||||
| Mount | C | Object Field of View(Φmm) | 136 | ||||
| Best Aperture(f/#) | 4.2 | MTF30 (lp/mm) | >215 | ||||
| Depth of Field(mm) | ±126@F11 | Distortion Typical(% max) | <0.1 | ||||
| Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 649±5 | ||||
| Length (mm) | 343.8 | Weight(kg) | 4.2 | ||||
| Measured Depth of Field (mm) | 18 | Filter Screw Size | M160x0.75 | ||||
| Field of View (mm × mm) | 1/2.5" 9P001/31 (5.7x4.28) | 96.6x72.5 | |||||
| 1/2.3" 9J003 (6.44x4.62) | 109.2x78.3 | ||||||
| Compatible Lighting | Telecentric LED Lighting | DTCL-136-xW-y | |||||
| Beam Diameter 136mm | |||||||
Dimensions
Naming Rule
