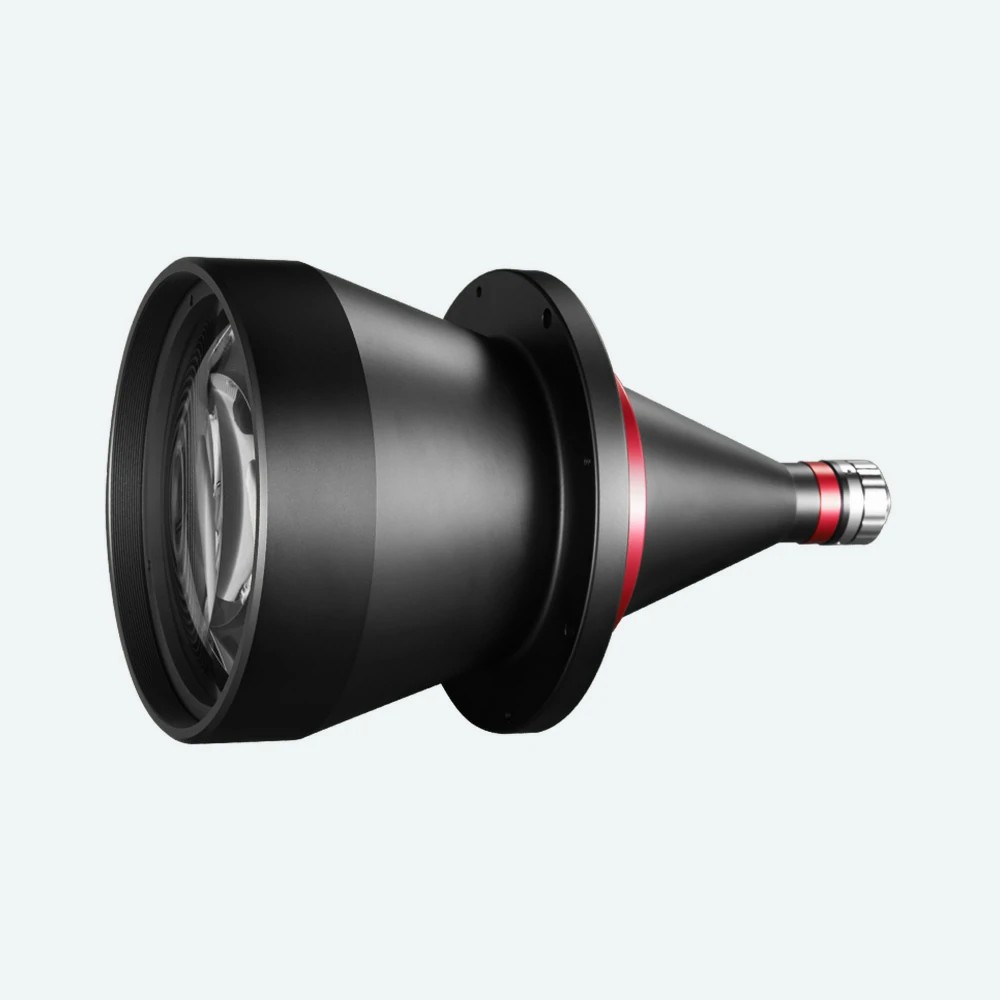

1/1.8" 0.042X Bi-Telecentric Lenses | DTCM118-216-AL COOLENS®
$9,273.00 USD
-
Return & Refund Policy
-
Fast Delivery
-
One-on-one service
-
Reliable Manufacturer
-
Worldwide shipping
-
Multiple payment methods
| Model NO. | DTCM118-216-AL | Image Circle Diameter (Φmm) | 9.0(1/1.8") | ||||
| Magnification(x) | 0.042 | Working Distance(mm) | 372±5 | ||||
| NA | 0.0045 | Type | Bi-Telecentric | ||||
| Mount | C | Object Field of View(Φmm) | 216 | ||||
| Best Aperture(f/#) | 4.6 | MTF30 (lp/mm) | >200 | ||||
| Depth of Field(mm) | ±249@F11 | Distortion Typical(% max) | <0.1 | ||||
| Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 889±5 | ||||
| Length (mm) | 499.1 | Weight(kg) | 13.7 | ||||
| Measured Depth of Field (mm) | 45 | Filter Screw Size | M249x1.0 | ||||
| Field of View (mm × mm) | 1/1.8" IMX178 (7.43x4.9) | 176.9x116.7 | |||||
| 1/1.8" IMX252/265 (7.1x5.3) | 169.0x126.2 | ||||||
| Compatible Lighting | Telecentric LED Lighting | DTCL-216-xW-y | |||||
| Beam Diameter 216mm | |||||||
