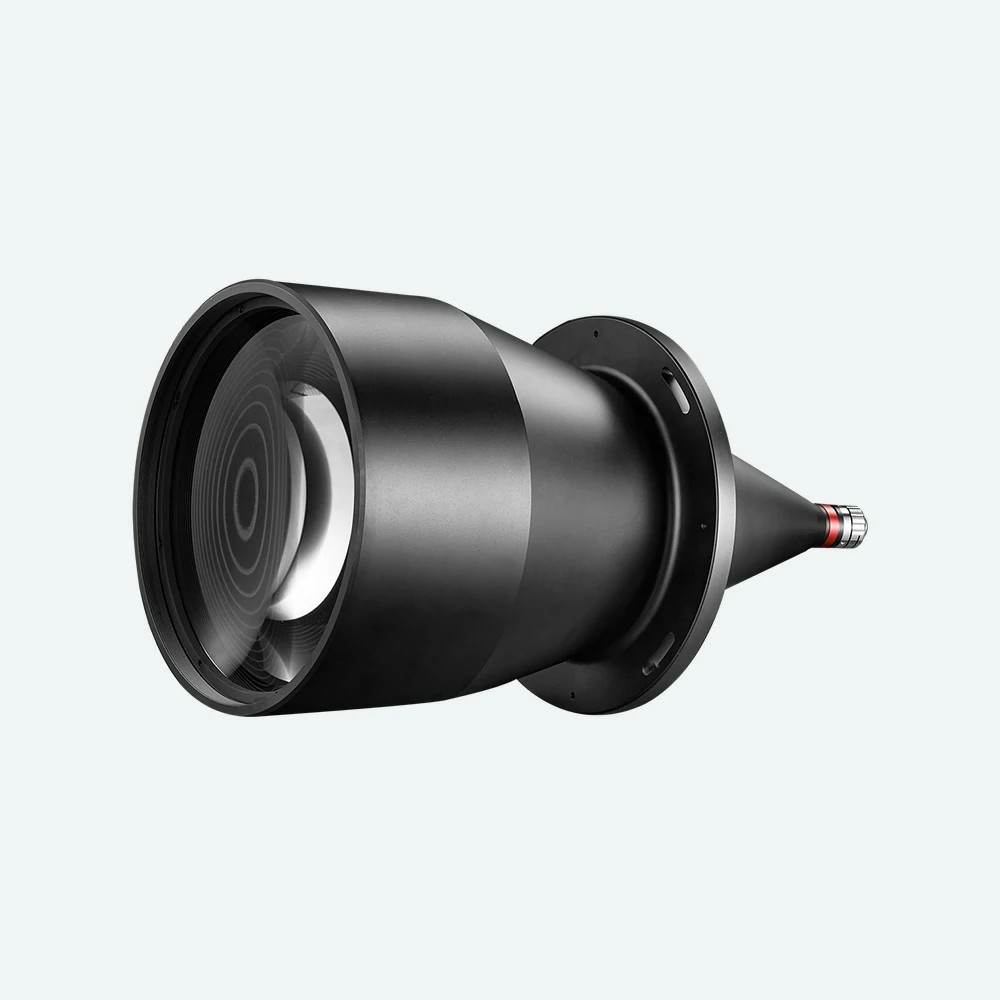

1/2.5" 0.03X Bi-Telecentric Lenses | DTCM125-240H-AL COOLENS®
$11,981.00 USD
-
Return & Refund Policy
-
Fast Delivery
-
One-on-one service
-
Reliable Manufacturer
-
Worldwide shipping
-
Multiple payment methods
| Model NO. | DTCM125-240H-AL | Image Circle Diameter (Φmm) | 7.2(1/2.5") | ||||
| Magnification(x) | 0.030 | Working Distance(mm) | 410±6 | ||||
| NA | 0.0035 | Type | Bi-Telecentric | ||||
| Mount | C | Object Field of View(Φmm) | 240 | ||||
| Best Aperture(f/#) | 4.2 | MTF30 (lp/mm) | >210 | ||||
| Depth of Field(mm) | ±489@F11 | Distortion Typical(% max) | <0.1 | ||||
| Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 968±6 | ||||
| Length (mm) | 540.1 | Weight(kg) | 19.1 | ||||
| Measured Depth of Field (mm) | 80 | Filter Screw Size | M272x1.0 | ||||
| Field of View (mm × mm) | 1/3" AR130/RJ33 (4.8x3.6) | 160.0x120.0 | |||||
| 1/2.5" 9P001/31 (5.7x4.28) | 190.0x142.7 | ||||||
| Compatible Lighting | Telecentric LED Lighting | DTCL-240H-xW-y | |||||
| Beam Diameter 240mm | |||||||
Dimensions
Naming Rule
